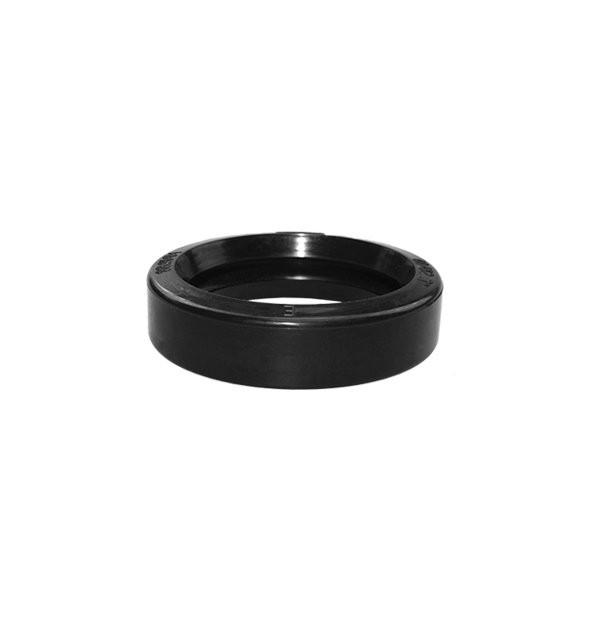

Dichtung für starre und flexible Nut-Kupplung
- Material: EPDM oder NITRIL
- SILIKON-Dichtung auf Anfrage
| Passend für Abmessung Rohr Ø mm | Zoll | DN | Filter | Verpackung | Bestell-Nr. | Menge | Add to Cart Button |
|---|---|---|---|---|---|---|---|
| 33,7 | 1" | 25 | EPDM | 1 | 046-ZD-EPDME-033 | ||
| 33,7 | 1" | 25 | NITRIL | 1 | 046-ZD-NITRIL-033 | ||
| 42,4 | 1 1/4" | 32 | EPDM | 1 | 046-ZD-EPDME-042 | ||
| 42,4 | 1 1/4" | 32 | NITRIL | 1 | 046-ZD-NITRIL-042 | ||
| 48,3 | 1 1/2" | 40 | EPDM | 1 | 046-ZD-EPDME-048 | ||
| 48,3 | 1 1/2" | 40 | NITRIL | 1 | 046-ZD-NITRIL-048 | ||
| 60,3 | 2" | 50 | EPDM | 1 | 046-ZD-EPDME-060 | ||
| 60,3 | 2" | 50 | NITRIL | 1 | 046-ZD-NITRIL-060 | ||
| 73,0 | 2 1/2" | 65 | EPDM | 1 | 046-ZD-EPDME-073 | ||
| 73,0 | 2 1/2" | 65 | NITRIL | 1 | 046-ZD-NITRIL-073 | ||
| 76,1 | 2 1/2" | 65 | EPDM | 1 | 046-ZD-EPDME-076 | ||
| 76,1 | 2 1/2" | 65 | NITRIL | 1 | 046-ZD-NITRIL-076 | ||
| 88,9 | 3" | 80 | EPDM | 1 | 046-ZD-EPDME-088 | ||
| 88,9 | 3" | 80 | NITRIL | 1 | 046-ZD-NITRIL-088 | ||
| 108,0 | 4" | 100 | EPDM | 1 | 046-ZD-EPDME-108 | ||
| 108,0 | 4" | 100 | NITRIL | 1 | 046-ZD-NITRIL-108 | ||
| 114,3 | 4" | 100 | EPDM | 1 | 046-ZD-EPDME-114 | ||
| 114,3 | 4" | 100 | NITRIL | 1 | 046-ZD-NITRIL-114 | ||
| 133,0 | 5" | 125 | EPDM | 1 | 046-ZD-EPDME-133 | ||
| 133,0 | 5" | 125 | NITRIL | 1 | 046-ZD-NITRIL-133 | ||
| 139,7 | 5" | 125 | EPDM | 1 | 046-ZD-EPDME-139 | ||
| 139,7 | 5" | 125 | NITRIL | 1 | 046-ZD-NITRIL-139 | ||
| 141,3 | 5" | 125 | EPDM | 1 | 046-ZD-EPDME-141 | ||
| 141,3 | 5" | 125 | NITRIL | 1 | 046-ZD-NITRIL-141 | ||
| 159,0 | 6" | 150 | EPDM | 1 | 046-ZD-EPDME-159 | ||
| 159,0 | 6" | 150 | NITRIL | 1 | 046-ZD-NITRIL-159 | ||
| 165,1 | 6" | 150 | EPDM | 1 | 046-ZD-EPDME-165 | ||
| 165,1 | 6" | 150 | NITRIL | 1 | 046-ZD-NITRIL-165 | ||
| 168,3 | 6" | 150 | EPDM | 1 | 046-ZD-EPDME-168 | ||
| 168,3 | 6" | 150 | NITRIL | 1 | 046-ZD-NITRIL-168 | ||
| 219,1 | 8" | 200 | EPDM | 1 | 046-ZD-EPDME-219 | ||
| 219,1 | 8" | 200 | NITRIL | 1 | 046-ZD-NITRIL-219 | ||
| 273,0 | 10" | 250 | EPDM | 1 | 046-ZD-EPDME-273 | ||
| 273,0 | 10" | 250 | NITRIL | 1 | 046-ZD-NITRIL-273 |
