Storz couplings

• Choose option

  Storz coupling with male thread

• Choose option

  Storz coupling with female thread

• Choose option

  Storz hose coupling with short hose stem

• Choose option

  Storz hose coupling 50° angular

• Choose option

  Storz suction hose coupling with long hose stem

• Choose option

  Storz end cap with chain

• Choose option

  Storz reducer

• Choose option

  Gasket for storz couplings

• Select options

  Hose with storz couplings

• Choose option

  Storz water divider with storz couplings, one inlet, two outlets

• Choose option

  Storz water divider with storz couplings, one inlet, three outlets

• Choose option

  Storz standpipe

• Choose option

  Storz multi-purpose-branchpipe

• Choose option

  Transition piece shutt-off storz coupling to brass claw coupling

• Choose option

  Transition piece storz coupling to flange

• Choose option

  Transition piece storz coupling to claw coupling for water

• Choose option

  Key for hydrant above ground type A DIN 3223

• Choose option

  Storz spanner ABC

• Choose option

  Gate valve with storz couplings

• Choose option

  Ball valve with storz couplings

---

STORZ Couplings

In many European countries storz couplings are the standard couplings for fire fighting hoses and equipment.

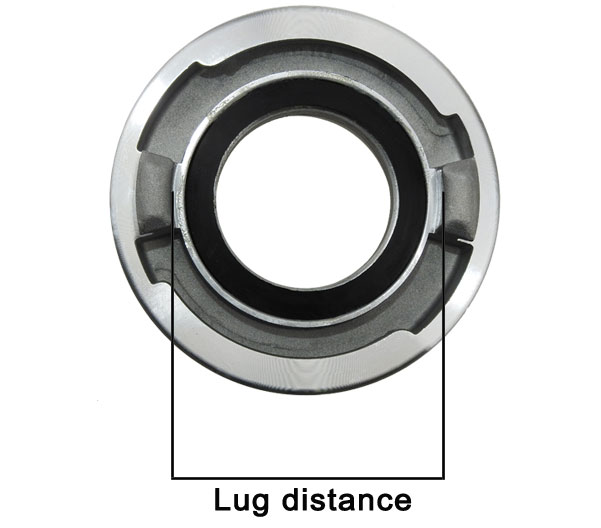

The couplings are often called as follows:

• D couplings (Lug distance 31 mm) = Ø 25 mm
• C couplings (Lug distance 66 mm) = Ø 52 mm
• B couplings (Lug distance 89 mm) = Ø 75 mm
• A couplings (Lug distance 133 mm) Ø 110 mm

Product Features:

• Material: aluminum, brass or stainless steel
• Gasket: NBR, stainless steel with gasket FKM
• Working pressure: max. PN 16 (size D, C, B), max. PN 12 (size A)
• Thread according to DIN ISO 228
• Couplings with identical ends (size) can be joined to any other end with the same diameter
