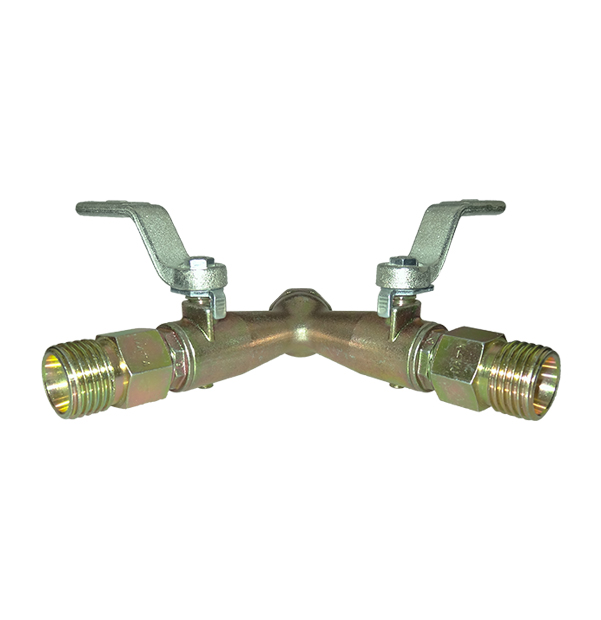

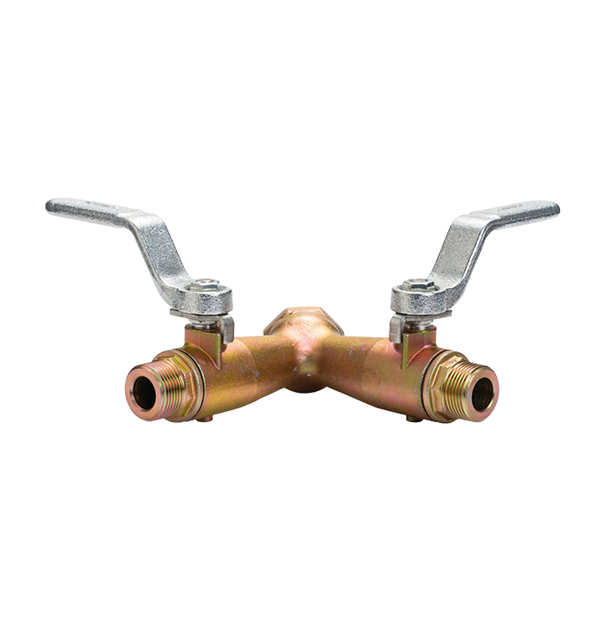

Double ball valve
Double ball valve

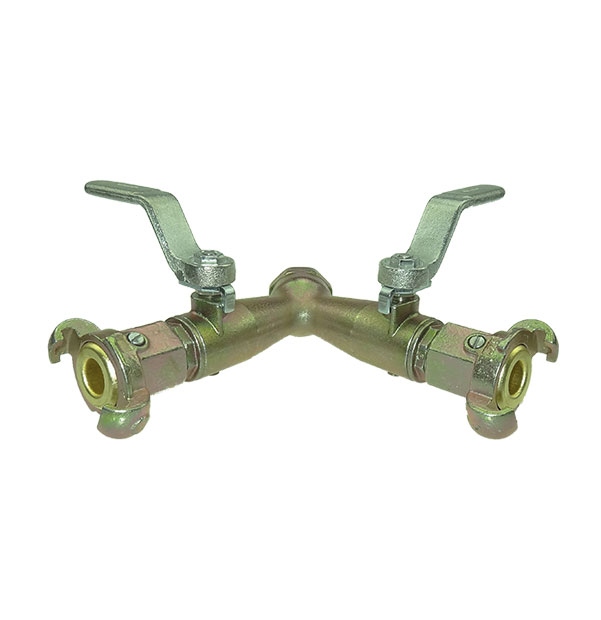

Double ball valve with coupling with brass gasket

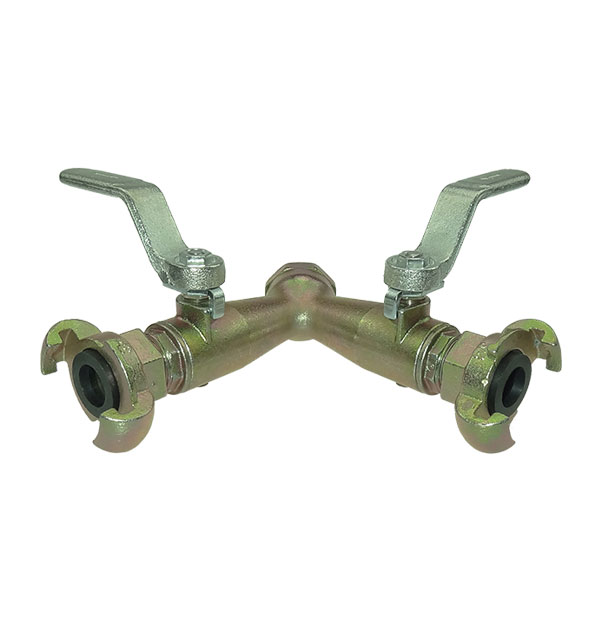

Double ball valve with coupling with rubber gasket
Double ball valve

Double ball valve

  • With lever stop
  • Material: casting, zinc plated
  • Gasket: PTFE
  • Temperature range: -15 °C to +100 °C
  • Exhaust on exit when lever is closed makes it safe and easy to remove the coupling
  • Working pressure: max. PN 40 (without coupling), max. PN 10 (with coupling)
  • Extremely robust
  • In exchange for throttle valve DIN 3487

Available Options:
